Telecommunication
All-terrain robust optical cable (F-PAC)＊
Overview

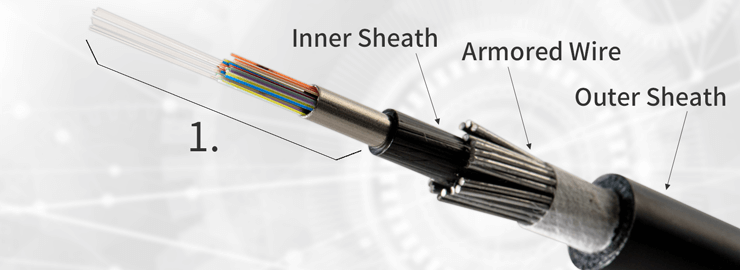

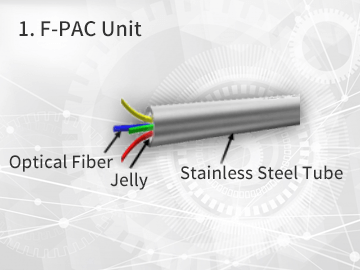

Optical fibers are directly protected by seam welded stainless steel tube instead of plastic tube. It is covered by polyethylene sheath and armored by steel wire.
＊F-PAC(Fiber Packed Armored Cable)Key Advantages
- Robustness
- Rodent proof, Water Proof, Excellent tolerance to lateral pressure.
- Easy Installation
- Thin and lightweight (enabling low cost construction and space saving), High flexibility.
- Long unit length
- Maximum length up to 12km per drum without cable joint enabling low loss and minimizing splice cost.
Compliant with a series of ITU-T Standard for Affordable Solution of Cable Installation in Rural Area
- Requirements for robust optical cable: ITU-T L.110
- ITU-T L.110 : https://www.itu.int/rec/T-REC-L.110-201708-I
- Concept of cost-effective cable installation in rural area: ITU-T L.1700
- ITU-T L.1700 : https://www.itu.int/rec/T-REC-L.1700-201606-I
- Best practices of cost-effective cable installation: ITU-T L.Sup22
- ITU-T L.Sup22 : https://www.itu.int/rec/T-REC-L.Sup22-201604-I
- Cable Installation method by use of L.110 compliant cable: ITU-T L.163
- ITU-T L.163 : https://www.itu.int/rec/T-REC-L.163-201811-I

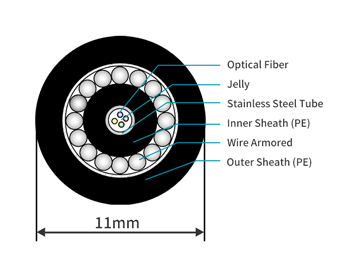

Armored F-PAC
Features and Use case
- Features
- Robust and Flexible
- Use case
- Direct burial
- Sewage system and Dam conduits

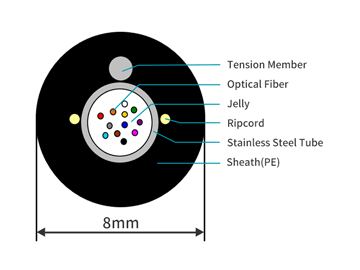

F-PAC with tension member
Features and Use case
- Features
- Compatibility standard parts and materials
- Excellent workability
- Use sase
- Aerial installation
- In-plant, Inside important facilities

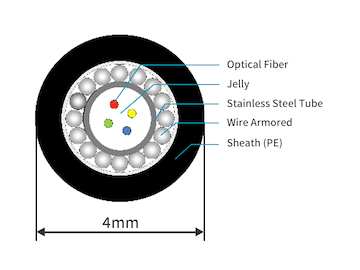

F-PAC Cord
Features and Use case
- Features
- Thin diameter with excellent mechanical property
- Use case
- In-plant conduit
- For security system
